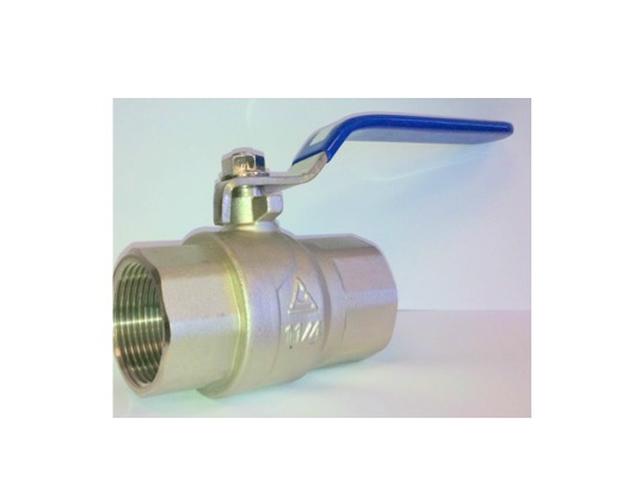

MACFLO? LONG THREADED BALL VALVE F/F, S/S HANDLE

Code	Description	Size
516008	Macflo? S/S lever handle long threaded ball valve f/f	8mm
516010	Macflo? S/S lever handle long threaded ball valve f/f	10mm
516015	Macflo? S/S lever handle long threaded ball valve f/f	15mm
516020	Macflo? S/S lever handle long threaded ball valve f/f	20mm
516025	Macflo? S/S lever handle long threaded ball valve f/f	25mm
516032	Macflo? S/S lever handle long threaded ball valve f/f	32mm
516040	Macflo? S/S lever handle long threaded ball valve f/f	40mm
516050	Macflo? S/S lever handle long threaded ball valve f/f	50mm

SPECS FOR 516 valves:

Working Temp 0oC to +150oC, 15mm - 50mm 600psi, 65mm - 100m 400psi

Working Pressure 20 bar

Long Thread, F/F, Full Bore, Stainless Steel handles, Nickel brass ball & body

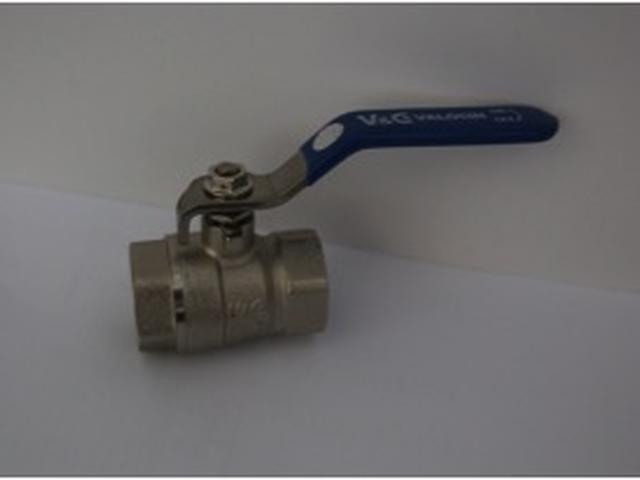

MACFLO? BALL VLAVE F/F, S/S HANDLE

Code	Description	Size
316008	Macflo? S/S lever handle ball valve f/f	8mm
316010	Macflo? S/S lever handle ball valve f/f	10mm
316015	Macflo? S/S lever handle ball valve f/f	15mm
316020	Macflo? S/S lever handle ball valve f/f	20mm
316025	Macflo? S/S lever handle ball valve f/f	25mm
316032	Macflo? S/S lever handle ball valve f/f	32mm
316040	Macflo? S/S lever handle ball valve f/f	40mm
316050	Macflo? S/S lever handle ball valve f/f	50mm
316065	Macflo? S/S lever handle ball valve f/f	65mm
316080	Macflo? S/S lever handle ball valve f/f	80mm
316100	Macflo? S/S lever handle ball valve f/f	100mm

SPECS FOR 316 / 317 / 318 / 319 valves:

Working Temp 0oC to +150oC, 15mm - 50mm 600psi, 65mm - 100m 400psi

Working Pressure 20 bar

F/F, Full Bore, Stainless Steel handles, Nickel brass ball & body

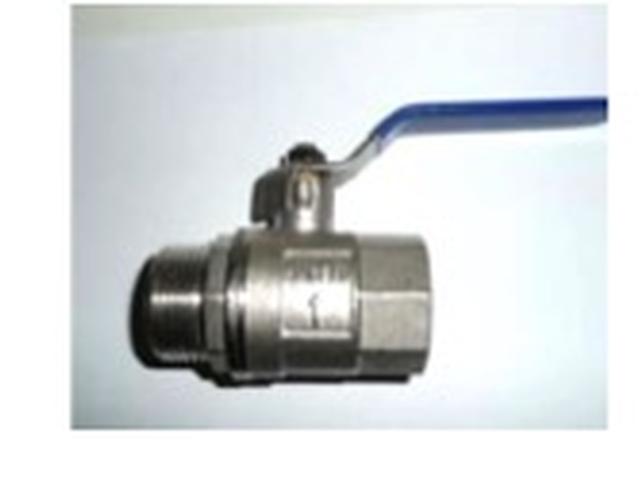

MACFLO? BALL VALVE M/F STAINLESS STEEL HANDLE

Code	Description	Size
317008	Macflo? S/S lever handle ball valve m/f	8mm
317010	Macflo? S/S lever handle ball valve m/f	10mm
317015	Macflo? S/S lever handle ball valve m/f	15mm
317020	Macflo? S/S lever handle ball valve m/f	20mm
317025	Macflo? S/S lever handle ball valve m/f	25mm
317032	Macflo? S/S lever handle ball valve m/f	32mm
317040	Macflo? S/S lever handle ball valve m/f	40mm
317050	Macflo? S/S lever handle ball valve m/f	50mm

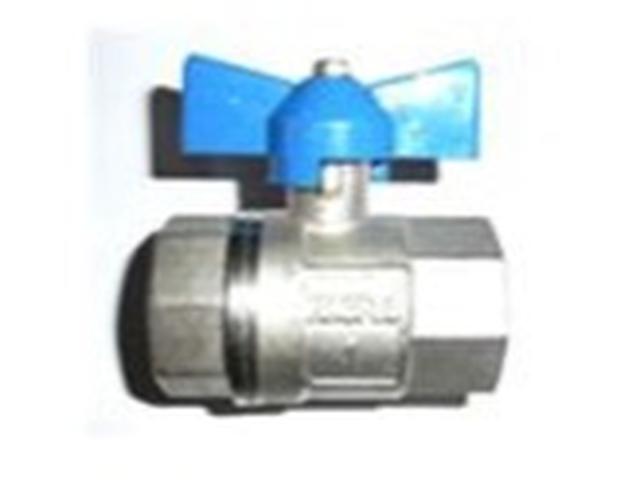

MACFLO? BALL VALVE F/F WITH ALUMINIUM T HANDLE

Code	Description	Size
318008	Macflo? T handle ball valve f/f	8mm
318010	Macflo? T handle ball valve f/f	10mm
318015	Macflo? T handle ball valve f/f	15mm
318020	Macflo? T handle ball valve f/f	20mm
318025	Macflo? T handle ball valve f/f	25mm

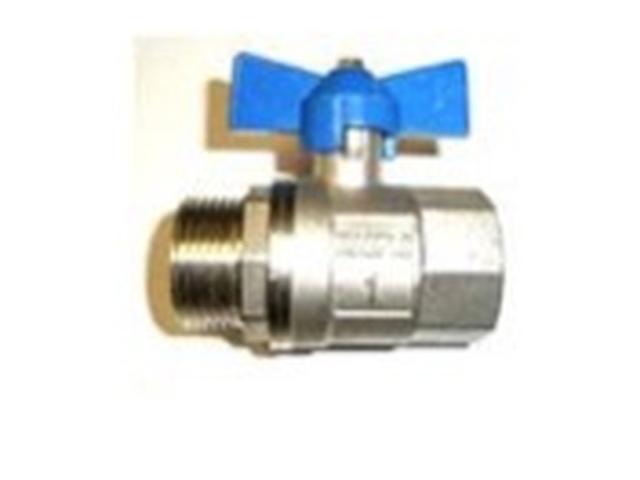

MACFLO? BALL VALVE M/F WITH ALUMINIUM T HANDLE

Code	Description	Size
319008	Macflo? T handle ball valve m/f	8mm
319010	Macflo? T handle ball valve m/f	10mm
319015	Macflo? T handle ball valve m/f	15mm
319020	Macflo? T handle ball valve m/f	20mm
319025	Macflo? T handle ball valve m/f	25mm

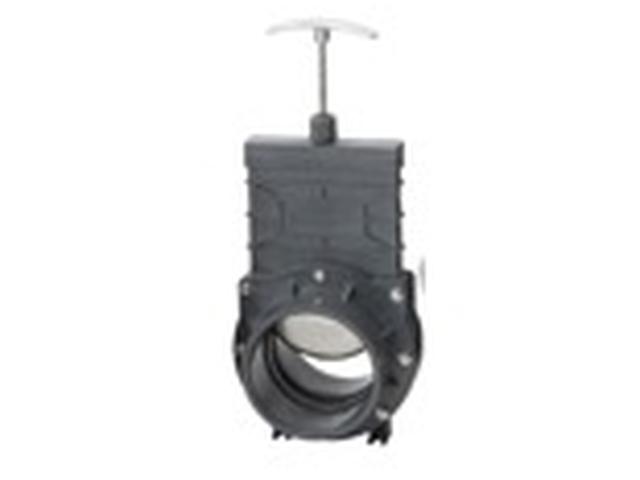

MACFLO? PVC SLIDE VALVES, SOCKET ENDS TO PVC PIPE, WORKING PRESSURE 0.35MPA, STORM WATER PIPE

Code	Description	Size
MSV090	Macflo? pvc slide valve	90mm slide valve fits 90mm stormwater
MSV100	Macflo? pvc slide valve	100mm slide valve fits 100mm stormwater
MSV150	Macflo? pvc slide valve	150mm slide valve fits 150mm stormwater

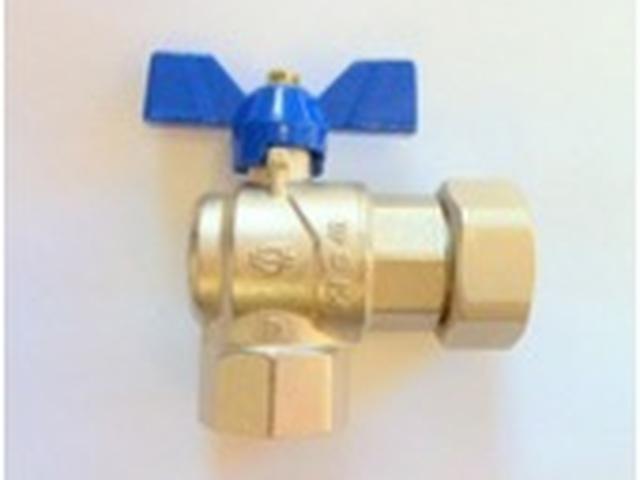

MACFLO? RIGHT ANGLE BALL VALVES

Code	Description	Size
320020	Macflo? right angle ball valve	1" x 20mm
320025	Macflo? right angle ball valve	1' x 25mm

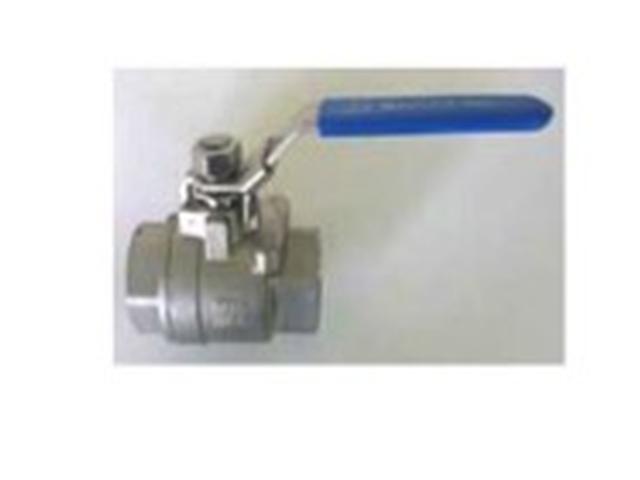

MACFLO? STAINLESS STEEL 2-PIECE BALL VALVES, 316 STAINLESS STEEL, 1000 PSI

Code	Description	Size
SBV15	Macflo? S/S 2-piece ball valve	15mm
SBV20	Macflo? S/S 2-piece ball valve	20mm
SBV25	Macflo? S/S 2-piece ball valve	25mm
SBV32	Macflo? S/S 2-piece ball valve	32mm
SBV40	Macflo? S/S 2-piece ball valve	40mm
SBV50	Macflo? S/S 2-piece ball valve	50mm

MACFLO? NYLON BALL VALVE, S/S HANDLE, WORKING TEMP -20oC TO +120oC. PRESSURE 1.6MPA

Code	Description	Size
416015	Macflo? nylon ball valve s/s handle	15mm
416020	Macflo? nylon ball valve s/s handle	20mm
416025	Macflo? nylon ball valve s/s handle	25mm
416032	Macflo? nylon ball valve s/s handle	32mm
416040	Macflo? nylon ball valve s/s handle	40mm
416050	Macflo? nylon ball valve s/s handle	50mm

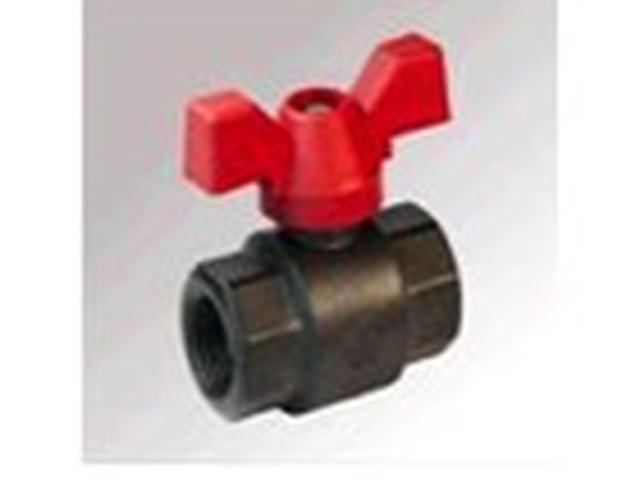

MACFLO? NYLON BALL VALVE, NYLON T-HANDLE, WORKING TEMP -20oC TO +120oC. PRESSURE 1.6MPA

Code	Description	Size
418015	Macflo? nylon ball valve t-handle	15mm
418020	Macflo? nylon ball valve t-handle	20mm

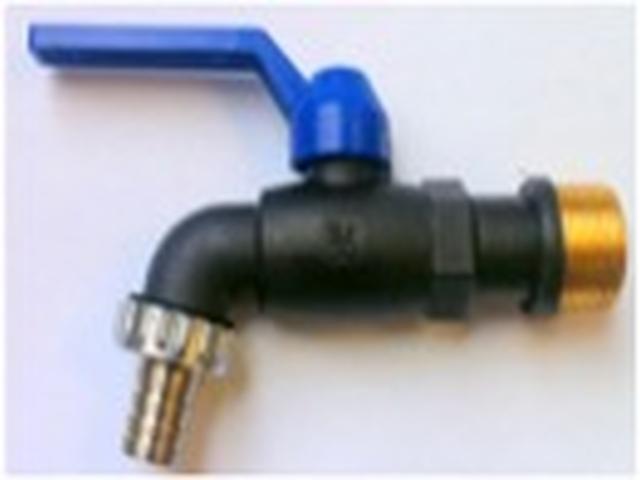

MACFLO? NYLON BALL HOSE TAP, NYLON BODY & HANDLE, BRASS THREAD. S/S HOSE TAIL, NIKEL PLATED BRASS BALL

Code	Description	Size
401015	Macflo? nylon ball hose tap	15mm
401020	Macflo? nylon ball hose tap	20mm

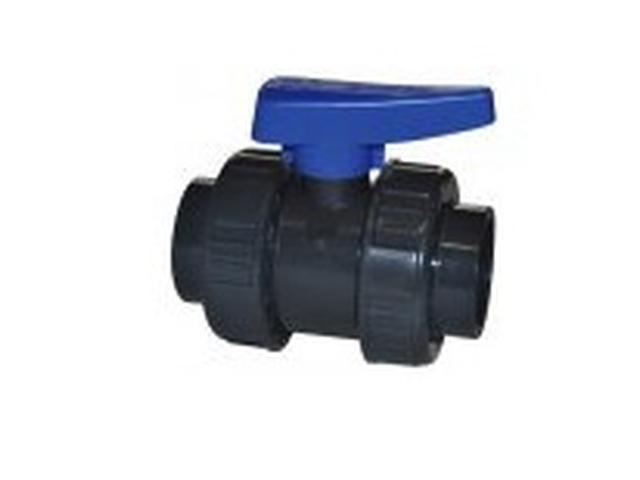

MACFLO? DOUBLE UNION PVC BALL VALVE, 16 BAR, EDPM O-RINGS, MAX TEMP 60oC, BSP THREADS

Code	Description	Size
MDBV015	Macflo? double union pvc ball valve	15mm
MDBV020	Macflo? double union pvc ball valve	20mm
MDBV025	Macflo? double union pvc ball valve	25mm
MDBV032	Macflo? double union pvc ball valve	32mm
MDBV040	Macflo? double union pvc ball valve	40mm
MDBV050	Macflo? double union pvc ball valve	50mm

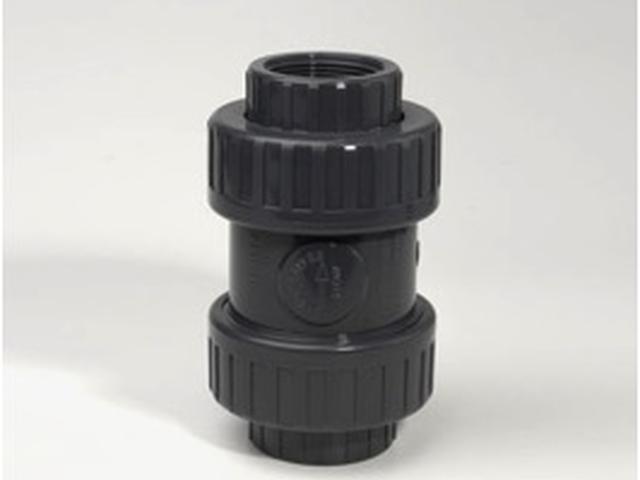

MACFLO? DOUBLE UNION CHECK VALVE

Code	Description	Size
MDCV20	Macflo? double union check valve	20mm
MDCV25	Macflo? double union check valve	25mm
MDCV32	Macflo? double union check valve	32mm
MDCV40	Macflo? double union check valve	40mm
MDCV50	Macflo? double union check valve	50mm

Macflo Double Union Check Valves Specs:

Min Opening Pressure 20mm-40mm = .010 Bar. 50mm = .008 Bar. Max working pressure = 16 Bar

Nuts & Body - PVC spring - S/S O-Rings - EDPM - Plug - PVC threads - BSP

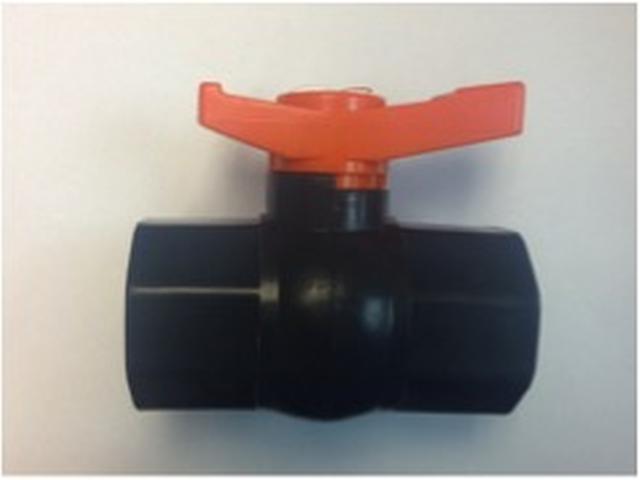

MACFLO? COMPACT BALL VALVE, MAX PRESSURE 7 BAR

Code	Description	Size
MPBV015	Macflo? compact ball valve	15mm
MPBV020	Macflo? compact ball valve	20mm
MPBV025	Macflo? compact ball valve	25mm
MPBV032	Macflo? compact ball valve	32mm
MPBV040	Macflo? compact ball valve	40mm
MPBV050	Macflo? compact ball valve	50mm
MPBV065	Macflo? compact ball valve	65mm
MPBV080	Macflo? compact ball valve	80mm
MPBV100	Macflo? compact ball valve	100mm
