产品描述


上海盈沣元器件有限公司专业代理销售美国Lansmont记录器,Lansmont测试仪,Lansmont数据采集器,Lansmont冲击试验机,Lansmont跌落试验设备

如有需求,欢迎来电垂询 缑先生

Test Partner 4

TEST PARTNER? 4 (TP4) is the latest generation data acquisition system designed to capture and analyze dynamic events where high frequency bandwidth is required. TP4 features fast data sample rates, configurable analog channels (to support IEPE sensors or perform event detection), and high channel count capabilities, giving you versatility to perform data acquisition for complex testing applications.

TP4_front

Test Partner 3

Lansmont’s Test Partner has always set the standard for computer-based acquisition and analysis of data from drop, shock, and impact events.  Simply install the hardware on your desktop or notebook without ever opening the hood- simply plug in the hardware to your computer’s USB port.  Then load the software, and you are ready to begin acquiring and analyzing data.


TP_MINI_web

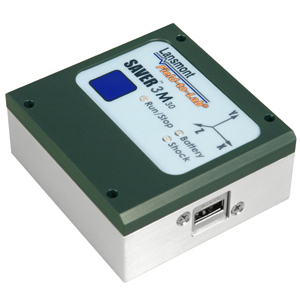

SAVER 3M30

SAVER 3M30 is the most affordable field data recorder on the market. It is equipped with an internal triaxial accelerometer and utilizes rechargeable batteries for up to 30 days of continuous measurement. SAVER 3M30 will measure and record the top 20 most significant events.


3M30_web

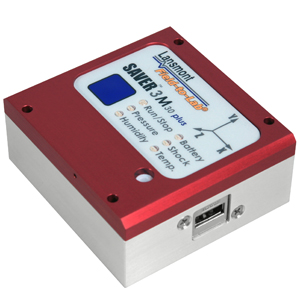

SAVER 3M30 PLUS

SAVER 3M30 PLUS incorporates all the performance specifications of the 3M30 with the additional capability to record temperature, humidity, and atmospheric pressure (altitude).  SAVER 3M30 PLUS will run for up to 30 days of continuous measurement and records the 100 most significant events.



3M30Plus_web

SAVER 3D15

SAVER 3D15 is intended for applications where DC recording capabilities are required. Most often these are low frequency measurements such as amusement park rides, aerospace flight applications, rail-car coupling impacts, and vehicle crash testing. SAVER 3D15 is the first model to use MEMS technology accelerometers with DC response measurement capability. This instrument is equipped with an internal triaxial accelerometer and will take measurements for up to 15 days.


3D15_web

SAVER 3X90

SAVER 3X90 is the most popular SAVER model–it combines everything you need into a single small package. SAVER 3X90 is powered with 9V lithium (or alkaline) batteries and provides continuous operation for up to 90 days. The internal triaxial accelerometer and temperature and humidity sensor can be used to record both signal-triggered events (data recorded when exceeding a threshold) and timer-triggered events (data recorded on a time interval).


3X90_web

SAVER 9X30

SAVER 9X30 has the ability to record up to 9 dynamic channels–an internal triaxial accelerometer as well as 6 external accelerometer inputs. SAVER 9X30 also includes sensors to record temperature, humidity, and atmospheric pressure. SAVER 9X30 is powered with 9V lithium (or alkaline) batteries and will take measurements for up to 30 days.  SAVER 9X30 can be setup to record signal-triggered and time-triggered events.


9X30_web

SAVER 9XGPS

SAVER 9XGPS is an enhanced version of SAVER 9X30 that adds built-in GPS capabilities. Adding GPS coordinates to recorded data allows event location and vehicle speed to automatically be embedded into captured data files. This adds further value and definition to your measurement results.


SAVER_9X30 GPS
